Data Association in ORB-SLAM2

Last updated on May 7, 2023 pm

[TOC]

Overview

Map Points & KeyFrames

  • Each keyframe \(K_i\) stores

    • ID

      1
      2
      3
      static long unsigned int nNextId;
      long unsigned int mnId;
      const long unsigned int mnFrameId;

    • camera pose
    • camera intrinsics

    • KeyPoints related

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      // Number of KeyPoints
      const int N;

      // KeyPoints, stereo coordinate and descriptors (all associated by an index)
      const std::vector<cv::KeyPoint> mvKeys;
      const std::vector<cv::KeyPoint> mvKeysUn;
      const std::vector<float> mvuRight; // negative value for monocular points
      const std::vector<float> mvDepth; // negative value for monocular points
      const cv::Mat mDescriptors;

      // BoW
      DBoW2::BowVector mBowVec;
      DBoW2::FeatureVector mFeatVec;

    • MapPoints associated to keypoints

      1
      2
      3
      4
      5
      6
      std::vector<MapPoint*> mvpMapPoints;

      void KeyFrame::AddMapPoint(MapPoint *pMP, const size_t &idx) {
          unique_lock<mutex> lock(mMutexFeatures);
          mvpMapPoints[idx] = pMP;
      }

  • Each map point \(P_i\) stores

    • ID

      1
      2
      3
      4
      5
      long unsigned int mnId;
      static long unsigned int nNextId;

      long int mnFirstKFid;
      long int mnFirstFrame;

    • Reference KeyFrame (TODO: Anchor Frame?)

      1
      KeyFrame* mpRefKF;

    • 3D position cv::Mat mWorldPos;
    • Mean viewing direction cv::Mat mNormalVector;
    • Best descriptor to fast matching cv::Mat mDescriptor;

    • The maximum and minimum distances

      1
      2
      3
      // Scale invariance distances
      float mfMinDistance;
      float mfMaxDistance;

    • Keyframes observing the point and associated index in keyframe

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      std::map<KeyFrame*,size_t> mObservations;
      int nObs;

      void MapPoint::AddObservation(KeyFrame* pKF, size_t idx)
      {
          unique_lock<mutex> lock(mMutexFeatures);
          if(mObservations.count(pKF))
              return;
          mObservations[pKF]=idx;

          if(pKF->mvuRight[idx]>=0)
              nObs+=2;
          else
              nObs++;
      }

    • Tracking counters

      1
      2
      int mnVisible;
      int mnFound;

exigent culling mechanism

  • MapPoints

    1
    void LocalMapping::MapPointCulling();

  • KeyFrame

    1
    void LocalMapping::KeyFrameCulling();

Covisible Graph (KeyFrame Connections)

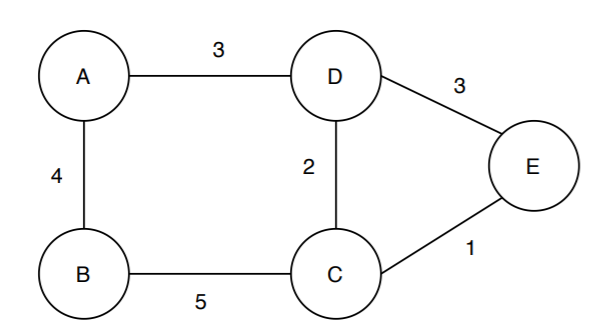

Covisibility information between keyframes is very useful in several tasks of our system, and is represented as an undirected weighted graph.

  • Node (KeyFrame)
  • Edge (Weight): 关键帧之间共视的 路标点数，至少15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
std::map<KeyFrame*,int> mConnectedKeyFrameWeights;

// Covisibility graph functions
void AddConnection(KeyFrame* pKF, const int &weight);

void EraseConnection(KeyFrame* pKF);

void UpdateConnections();
void UpdateBestCovisibles();

std::set<KeyFrame *> GetConnectedKeyFrames();
std::vector<KeyFrame*> GetVectorCovisibleKeyFrames();
std::vector<KeyFrame*> GetBestCovisibilityKeyFrames(const int &N);
std::vector<KeyFrame*> GetCovisiblesByWeight(const int &w);
int GetWeight(KeyFrame* pKF);

Spanning Tree

The system builds incrementally a spanning tree from the initial keyframe, which provides a connected subgraph of the covisibility graph with minimal number of edges. When a new keyframe is inserted, it is included in the tree linked to the keyframe which shares most point observations, and when a keyframe is erased by the culling policy, the system updates the links affected by that keyframe.

  • Parent Node: KeyFrame* mpParent;, the pair with highest covisibility weight
  • Child Nodes: std::set<KeyFrame*> mspChildrens;
1
2
3
4
5
6
7
8
9
10
// Spanning tree functions
void AddChild(KeyFrame* pKF);

void EraseChild(KeyFrame* pKF);

void ChangeParent(KeyFrame* pKF);

std::set<KeyFrame*> GetChilds();
KeyFrame* GetParent();
bool hasChild(KeyFrame* pKF);
  • TrackLocalMap 里 UpdateLocalKeyFrames更新局部地图中的关键帧
  • 闭环矫正时 优化 Essential Graph

Loop Edges

  • std::set<KeyFrame*> mspLoopEdges;
1
2
3
// Loop Edges
void AddLoopEdge(KeyFrame* pKF);
std::set<KeyFrame*> GetLoopEdges();

Essential Graph

The Essential Graph contains the spanning tree, the subset of edges from the covisibility graph with high covisibility (\(\theta_{min} = 100\)), and the loop closure edges, resulting in a strong network of cameras.

  • Node (KeyFrame)
  • Edge
    • Spanning tree edges
    • Covisibility graph edges (weight > 100): pKF->GetCovisiblesByWeight(100)
    • Loop edges
